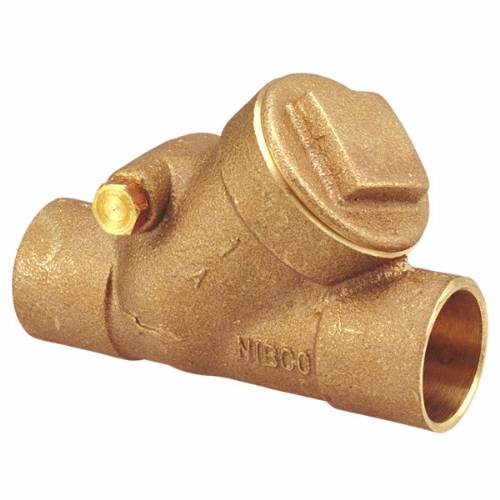

S-413-W Check Valve, Bronze, Class 125, Buna-N Seat Disc

Material Description - S413W Thd 125# ,Y Pattern, Horizontal Swing, SB, Integral Seat, BRenewable Buna-N disc

Check Valve Bronze, Class 125, Bronze Seat Disc Solder End

Bronze, Class 125, Buna-N Seat Disc

The NIBCO® bronze horizontal swing check valve has a Y-pattern design with renewable seat and disc. The swing check valve prevents backflow by automatically closing when fluid reverses direction. With the Buna-N seat disc, the check valve is recommended for commercial and industrial water, oil and gas services.

The bronze check valve features solder end connections for ease of installation. It features a screw-in bonnet for accessibility to repair or replace parts. Swing checks may be installed in horizontal positions (or vertical with flow moving up). Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® check valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® check valves are backed by the NIBCO 5-year 125% limited warranty.

200 psi/13.8 bar non-shock cold working pressure
Y-pattern
Renewable Buna-N disc
Regrindable seat
Class 125 solder end connections
Conforms to MSS SP-80
Size range ¼" to 3"
